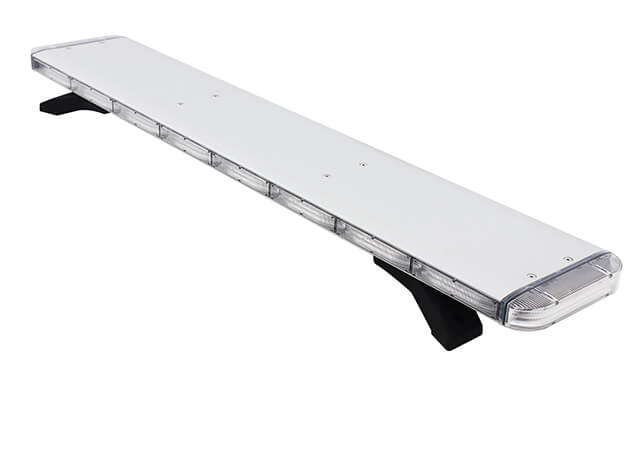

Taiwan Lightbar
- Approval- SAE Class I / ECE R65 Class II
- Voltage- 10-30VDC

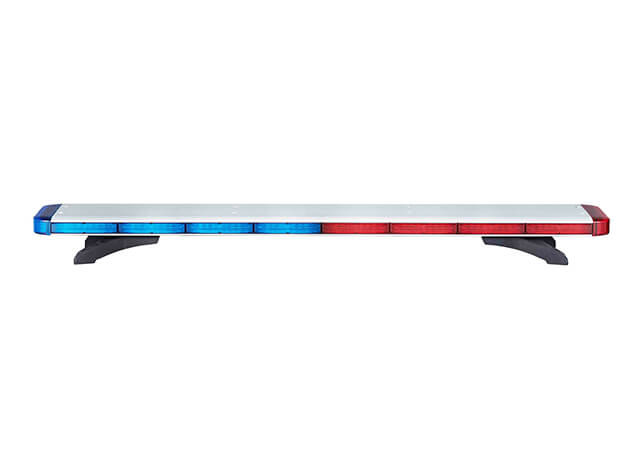

- Number of LEDs Per Module- 9 Led per Module (18 for Dual Color)
- Max Consumption- 17.4A at 66.6" (1666mm)
- Storage Temperature- -40°C degree to +90°C degree
- Working Temperature- -30°C degree to +50°C degree
- IP Rating- IP67 For Components

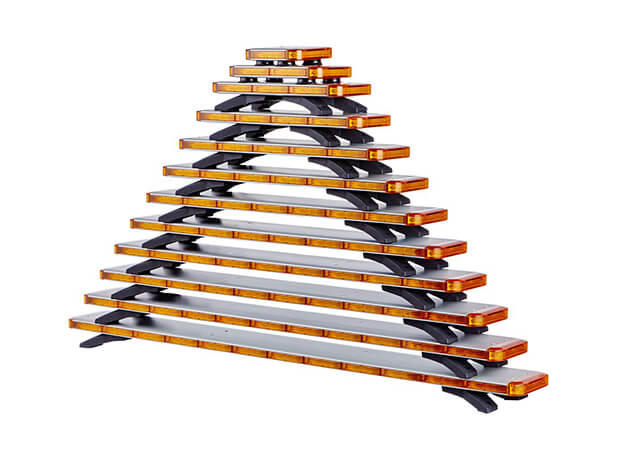

| Length | Width | Height |
|---|---|---|
| 8.5" (210mm) | 201mm | 38mm |
| 13.5" (343mm) | 201mm | 38mm |
| 18.7" (475mm) | 201mm | 38mm |
| 24" (608mm) | 201mm | 38mm |
| 29" (740mm) | 201mm | 38mm |
| 34" (872mm) | 201mm | 38mm |
| 40" (1005mm) | 201mm | 38mm |
| 45" (1137mm) | 201mm | 38mm |
| 50" (1269mm) | 201mm | 38mm |
| 55" (1401mm) | 201mm | 38mm |
| 60.4" (1534mm) | 201mm | 38mm |
| 66.6" (1666mm) | 201mm | 38mm |
